ekey home - Stand-alone Solution

ekey home is the innovative finger scanner set for your private front door or your office door. The system combines simple installation and intuitive user management. Depending on the specific scope, the finger scanners are available in different hardware designs.

Feature Highlights

Up to 99 different fingerprints can be stored
User administration carried out directly on the control panel (no PC required)
ekey home Set: Control panel with 1 relay output
ekey home 3 Set: Control panel with 3 relay outputs: Up to 3 applications (e.g. index finger unlocks the front door, middle finger opens the garage door, ring finger arms/disarms the alarm system) can be managed via the relay outputs.

Design Finger Scanner
System Description

Finger Scanner wall mounted	Finger Scanner outlet mounted	Finger Scanner integra	Finger Scanner FSB

For straightforward installation onto walls	For integration into gang boxes, entrance panels or mailboxes	For integration into door leafs or door frames	Award winning pull door handle with integrated ekey finger scanner

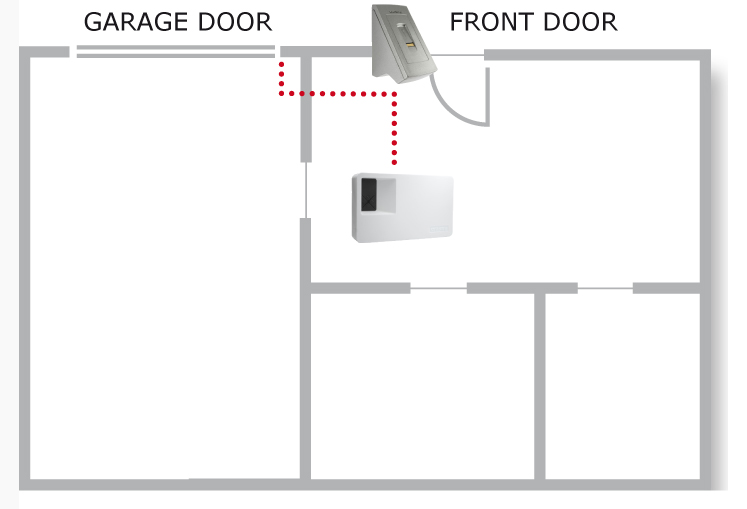

System Description ekey home

An ekey home set always consists of a finger scanner and an allocated control panel.

Finger Scanner

New fingerprints are captured and processed via the ekey home finger scanner. When registering a new user, the distinctive features are captured and converted into a binary code. This process is irreversible, i.e. the original fingerprint image cannot be reconstructed from the converted data.

If a finger is subsequently swiped over the sensor, the captured information will be compared with the originally stored templates. Only on a positive match, the door will open.In the ekey home system, new fingerprints are enrolled directly on the finger scanner at the door.

Control Panel

On the ekey home control panel, the relay outputs are located which are used to control electromechanical locks, garage doors or intrusion systems. As a result, it is to be mounted in a secure area (e.g. indoor).

The ekey home control panel is also used for the system administration: New users can be added, existing ones deleted by a few clicks. For that purpose, it is equipped with a display and several push buttons.
